3200D RS
MID-TOWER PC CASE
3200D RS Mid-Tower PC Case
- Supports 360mm AIO radiators in the top or front
- 375mm GPU clearance (400mm with fans removed)
- Abundant cooling options with 9x 120mm fan mounts
- 3x RS120 Fans included
- Angled bottom fan mount for direct GPU cooling
- Built-in GPU Anti-sag Stabilization Arm
- Compatible with reverse-connector motherboards
Current price: $69.99
Color
Black
Smoke
White
Color:
Edition
3200D RS
3200D RS ARGB
MORE TO CONSIDER
CORSAIR XENEON EDGE 14.5 inch LCD Touchscreen
Current price: $249.99
SKU: CC-9011334-WW
Current price: $69.99
- Overview
- Tech Specs
- Downloads
- Guides
GAMING POWERHOUSE
ROOM FOR THE BIGGEST GPUs
The 3200D is a spacious mid-tower chassis designed for modern GPUs. With 375mm of clearance with front fans installed, even the most powerful GPUs have plenty of room to breathe. The PSU shroud also features 2x 120mm fan mounts, with the front one being angled directly at the GPU, providing even more cooling power for the hottest GPUs.
AIR BENDING

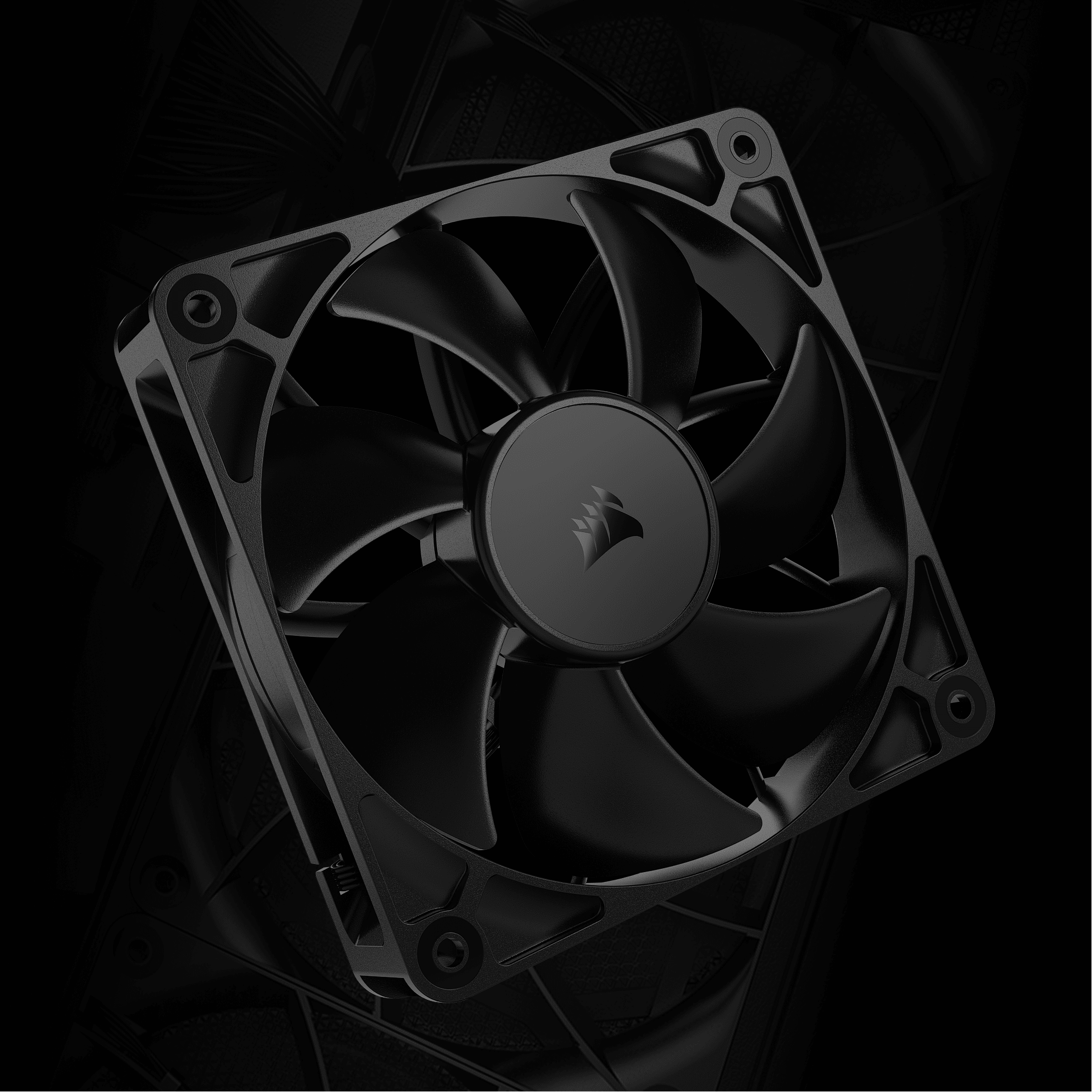

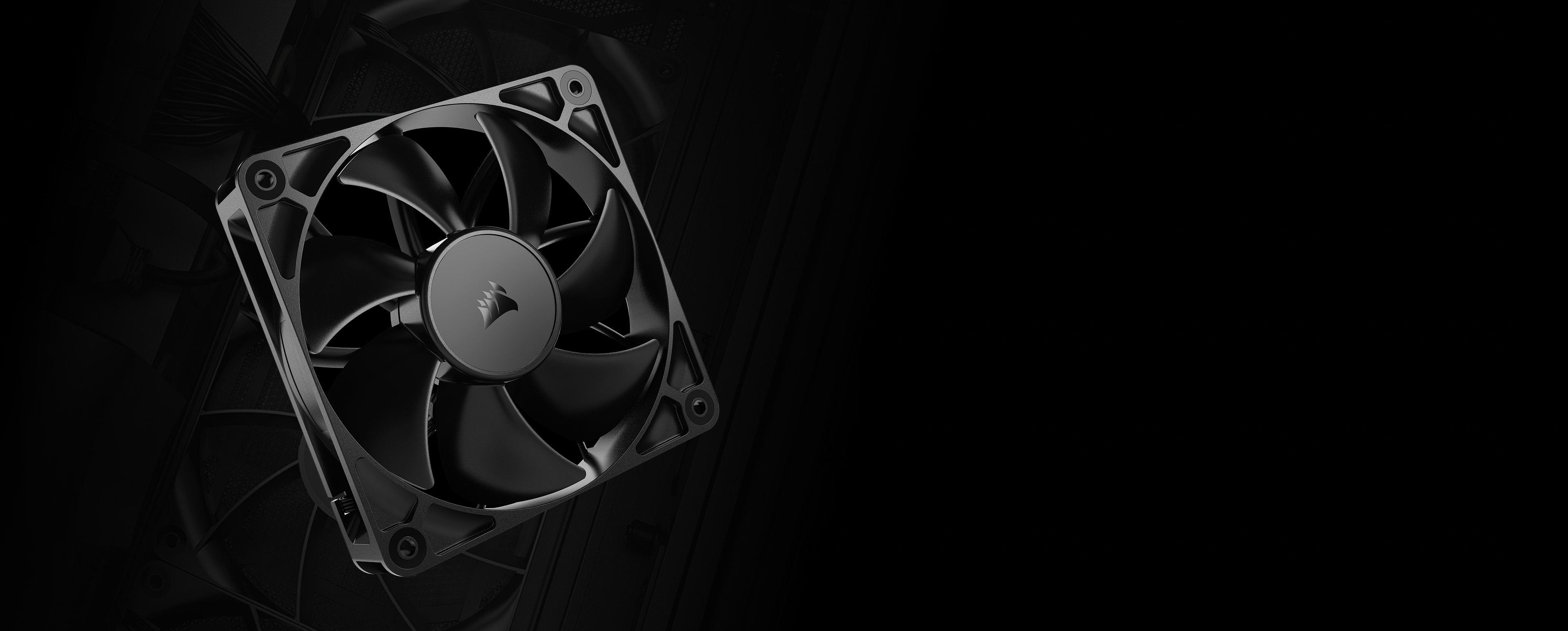

THREE RS120 FANS INCLUDED
RS120 PWM fans minimize friction and mechanical noise with its magnetic dome bearing, achieving a balance between high airflow performance with a low acoustic footprint.
UNIFIED FAN CONTROL
DIRECT-TO-MOTHERBOARD CONNECTION
Skip the fan hubs and excessive cables – daisy-chain your RS Series fans in sequence and control them all through just a single 4-pin PWM connector on your motherboard.
*RS ARGB fans and connections shown.

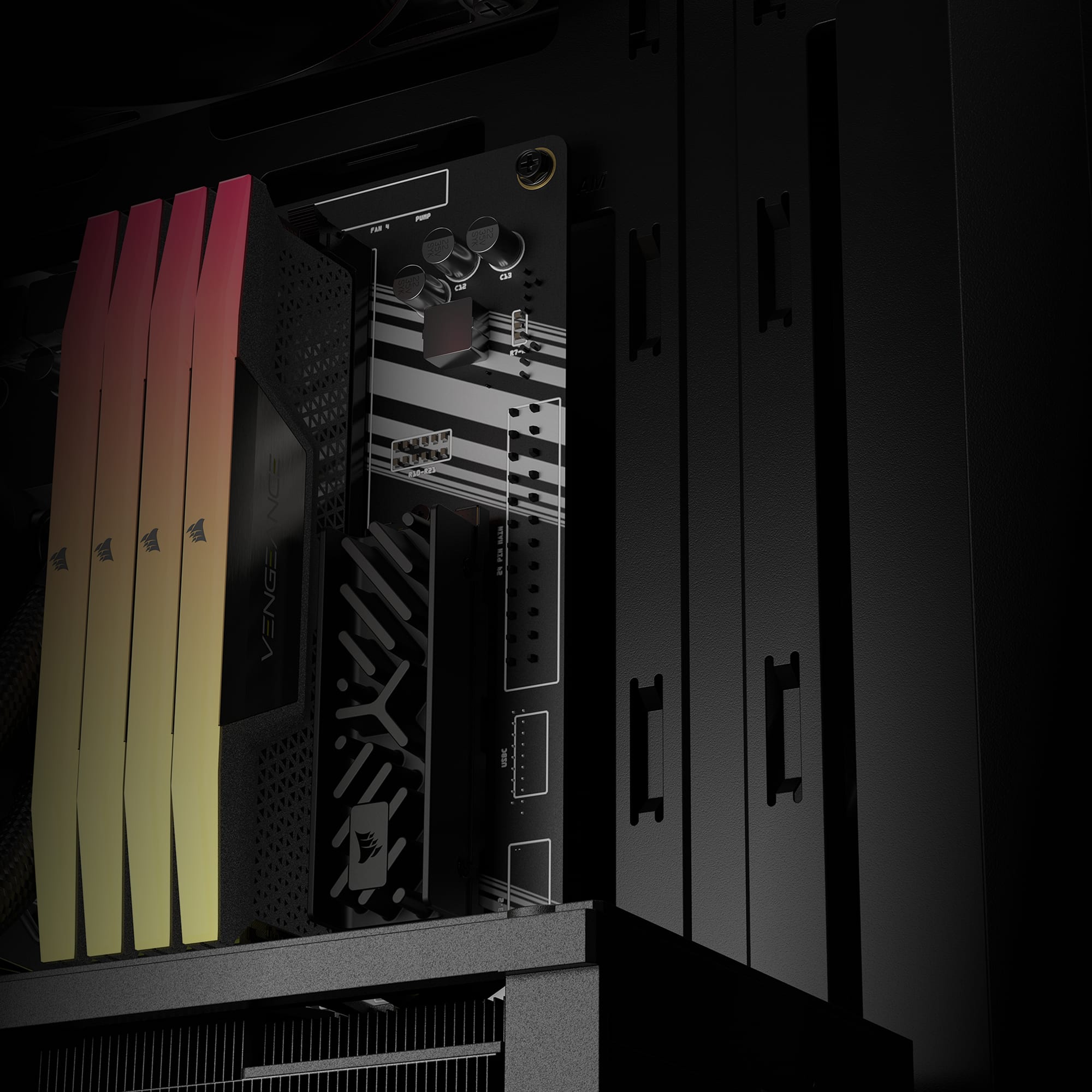

CABLE MANAGEMENT CHEAT CODE
DESIGNED FOR SUPER-CLEAN BUILDS
Cable management is easy in the 3200D with support for reverse-connector motherboards, a built-in cable shroud, and ample tie-down locations throughout the chassis.
FUNCTION FIRST
BUILT FOR THE REAL WORLD
Every detail of the 3200D is focused on performance and how your system runs day to day. From keeping your graphics card securely in place to directing airflow where it is needed most, these features work together to help your build maintain optimal performance.
SAG-FREE GRAPHICS CARDS
Every 3200D includes a built-in Anti-sag Stabilization Arm that is adjustable, so you don’t have to worry about damaging your GPU or your PCIe slot.
ANGLED BOTTOM FAN MOUNT
An angled fan mount in the bottom of the case allows cool air to be channeled directly at the GPU for improved cooling and better GPU temps.
HIGH-AIRFLOW FRONT PANEL
Engineered for high airflow, the front panel delivers excellent cooling for high-power components with a unique style.
WIDE COOLING FLEXIBILITY
The CORSAIR 3200D is made to keep the hottest components cool with 2x 360mm radiator mounting locations and fan mounts throughout the chassis for continuous airflow.
The 3200D is a roomy chassis with plenty of space for fans, radiators, and liquid-cooling components.
BUILD SHOWCASE
BUILD FOR YOU
TWO-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.

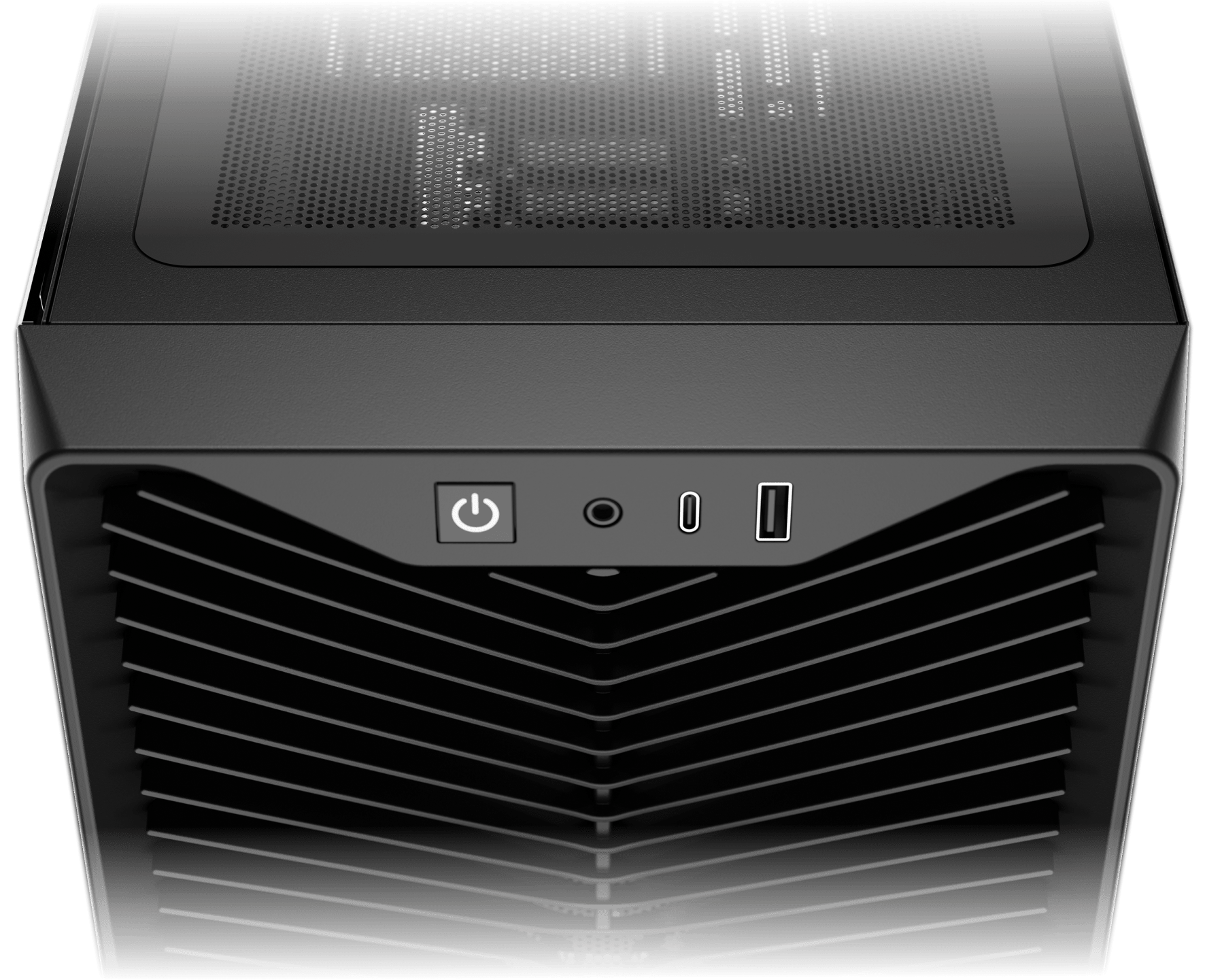

MODERN FRONT PANEL I/O
The top-mounted I/O ports grant easy access to a USB 3.2 Gen 2x2 Type-C 20Gb/s port for lightning-fast data transfers, a USB 2.0 Type-A, a combo audio/microphone jack, and a power button.
Tech Specs
| Case Supported | Mini-ITX | MicroATX | ATX |
|---|---|
| Case Height | 495 |
| Case Length | 458 |
| Case Width | 219 |
| Material | Steel,Tempered Glass,Plastic |
| Color | BLACK |
| Case Size | Mid-Tower |
| Radiator Compatibility | 120mm,140mm,240mm,280mm,360mm |
| Case Window | Tempered Glass |
| Compatible Liquid Coolers | H60,H100,H115,H150,NAUTILUS,TITAN |
| Case Warranty | 2 Year |
| Maximum CPU Cooler Height | 165mm |
| Maximum PSU Length | 180mm |
| Case Front IO | (1x) USB 3.2 Gen 2x2 Type-C, (1x) USB 2.0 Type-A, (1x) Audio in/out |
| Maximum GPU Length | 400mm |
| Weight | 8kg |
| Case Expansion Slots | 7 Horizontal |
| Case Power Supply | ATX |
| Radiator Support - Top | 360mm, 280mm, 240mm |
| Radiator Support - Front | 360mm, 280mm, 240mm |
|---|---|
| Radiator Support - Bottom | None |
| Radiator Support - Side | None |
| Radiator Support - Rear | 120mm |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Front | 3x 120mm, 2x 140mm |
| Fan Support - Bottom | 2x 120mm |
| Fan Support - Side | None |
| Fan Support - Rear | 1x 120mm |
| Front IO Motherboard Connections | 1x USB-3.2 Gen2x2 Type-E, 1x USB 2.0 9-Pin, 1x F_PANEL, 1x HD Audio |
| Reverse Connector Motherboard Support | Yes |
| Included Fans | RS Series |
| Dust Filtration | Yes |
| Cable Routing Space | 24mm |
| RapidRoute Included | No |
| Right Side Panel | Steel |
| Left Side Panel | Tempered Glass |
| Vertical Mount Support | Unsupported |
